Adjustable box frame fall arrest system - 12 ft. to 18 ft. adjustable anchor height - 20 ft. wide fall arrest rail and trolley - Easy detent pin style adjustment - 3M DBI-SALA 8530288
$73,303.59 USD
This item ships LTL Freight. You will be contacted with a quote for shipping costs.
Description
Adjustable Box Frame System with 12-18 ft. (3.7-5.5m) height range, 12 ft. (3.7m) width, 20 ft. (6.1m) single rail and 12 in. (30.5 cm) rubber wheels.

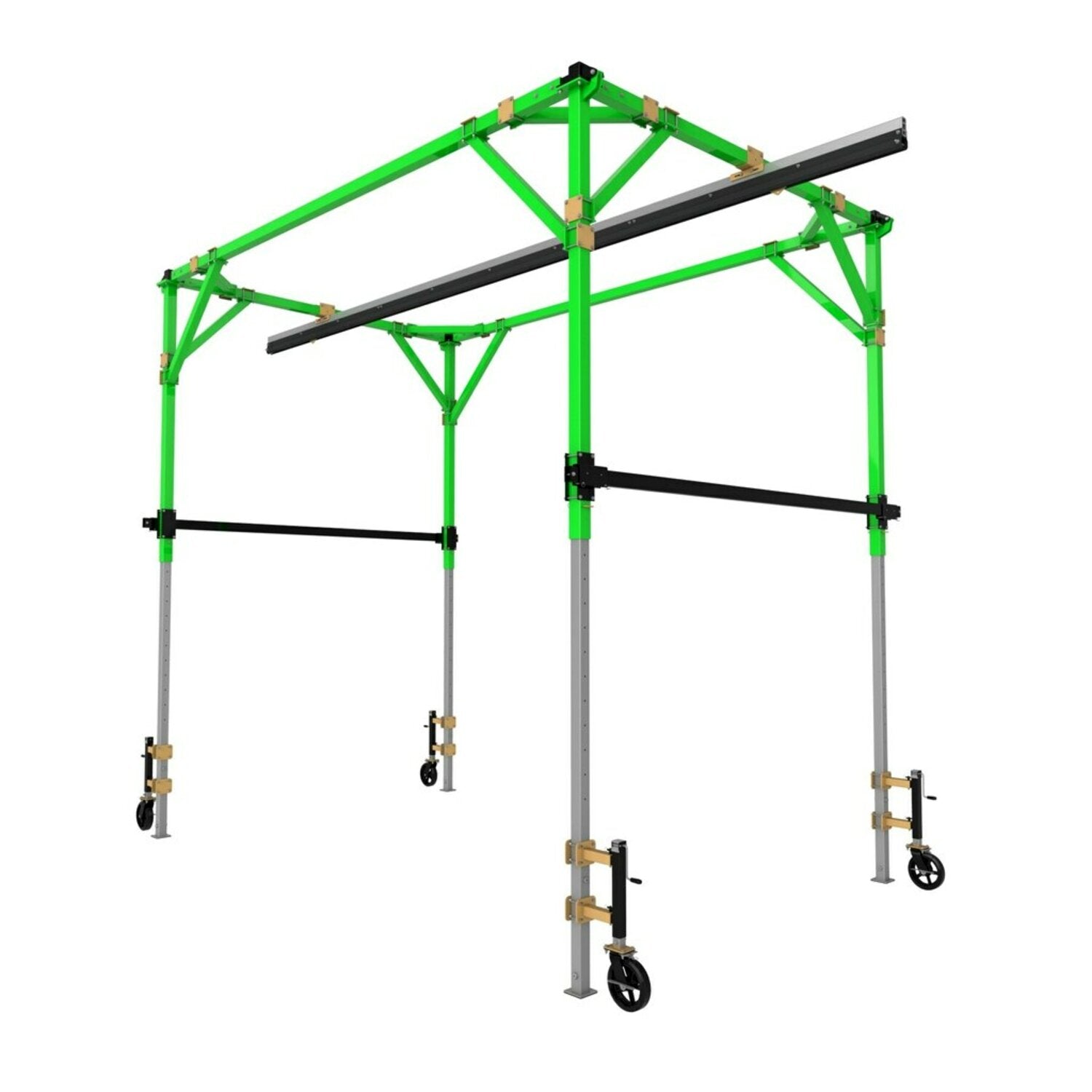

Adjustable box frame fall arrest system
The flexiguard box frame access system is portable and ideal for areas which lack overhead tie-off points. The flexiguard box frame can be wheeled over the work area (adjusted as needed). Frame supports a 20 ft. fall arrest rail with two sliding anchor points (310 lbs. max per user).
| Image | Anchor Height | Frame width | Rail | Wheels | # of users | SKU |
|---|---|---|---|---|---|---|
| 12 ft.-18 ft. (3.7 m-5.5 m) |
12 ft. (3.7 m) |
Single rail 20 ft. (6.1 m) | 12 in. Rubber | 2 | 8530288 | |
| 14 ft . (4.3 m) |
14 ft. (4.3 m) |
Dual rail 15.5 ft. (4.7 m) each | 16 in. (0.4 m) Pneumatic | 2 | 8530345 | |
| 21 ft. (6.4 m) |
15 ft. (4.6 m) |
Single rail 28 ft. (8.5 m) | 12 in. (0.3 m) Rubber | 2 | 8530361 | |
| 30 ft. (9.1 m) |
20 ft. (6.1 m) |
Dual rail 32 ft. (9.8 m) each | 16 in. (0.4 m) Pneumatic | 2 | 8530427 |
