Full-height Ladder Safety Gate - Self-closing industrial swing gate - Easy installation - Meets OSHA & ANSI - PS DOORS LSGF

$536.00 USD

7 Nominal Sizes - LSGF is available in differant sizes, each adjustable up to 10".
Passive fall protection - Prevents falls from elevated ladderways and platforms.
Code compliant - Meets OSHA / ANSI guardrail regulations for 42" top, a mid rail and 5" toeboard.
Easy installation - Installs in moments using just a 1/2" deep-well socket wrench.
Universal swing direction - Gate can be inverted to change the direction the gate swings outward.
Optional stand-off mount - Include the LSG-STNDOFF to provide personnel a grip spot and 7" of foot clearance to platform edge.
Optional adapter brackets - Adapter brackets can be utilized for non-standard railing or to prevent drilling holes. NOTE: Use of the adapter brackets alter the min/max range of the gate, and two brackets must be purchased per gate.
Optional Lockup Kit - The Lock-out Kit prevents unauthorized access to restricted areas, mezzanines and platforms.

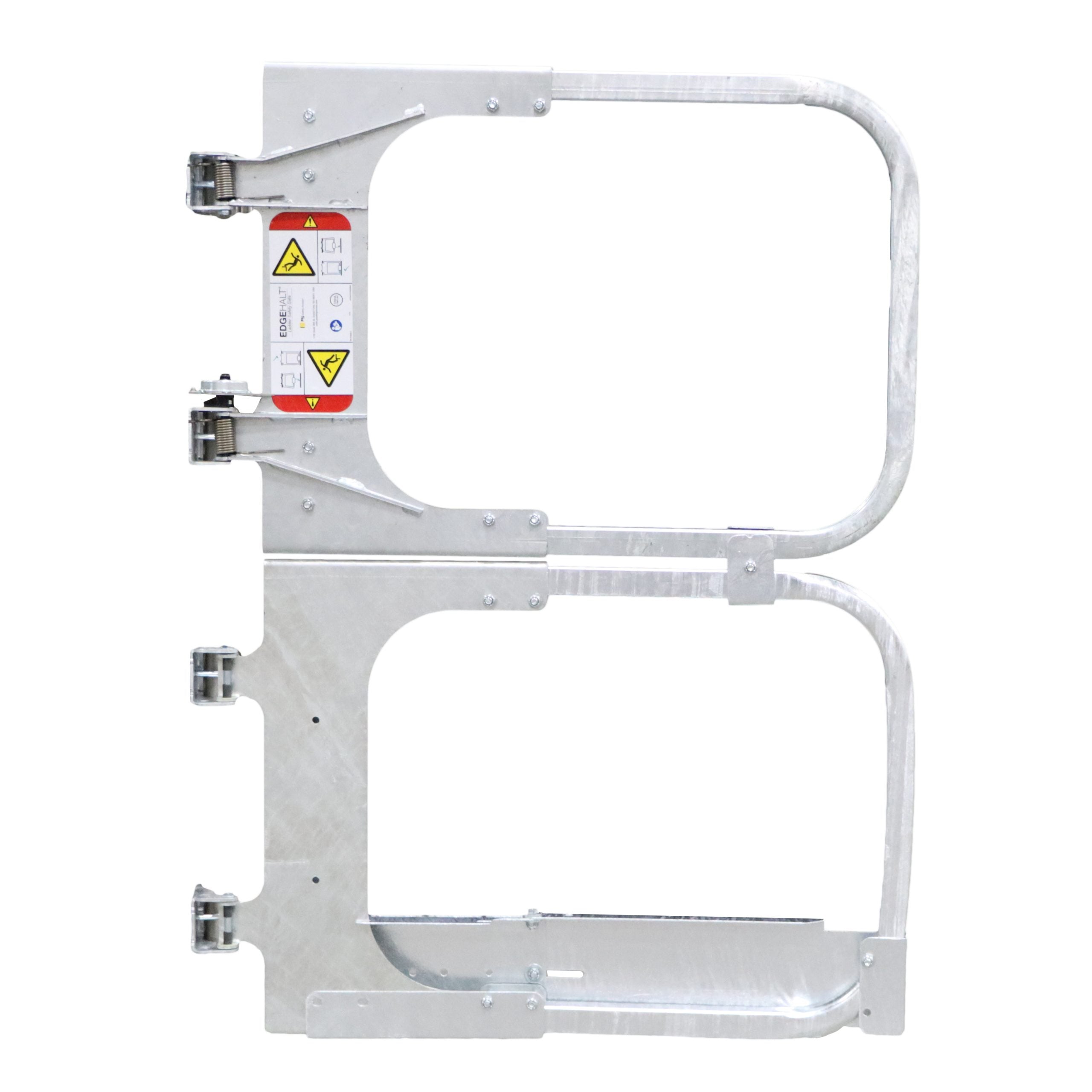

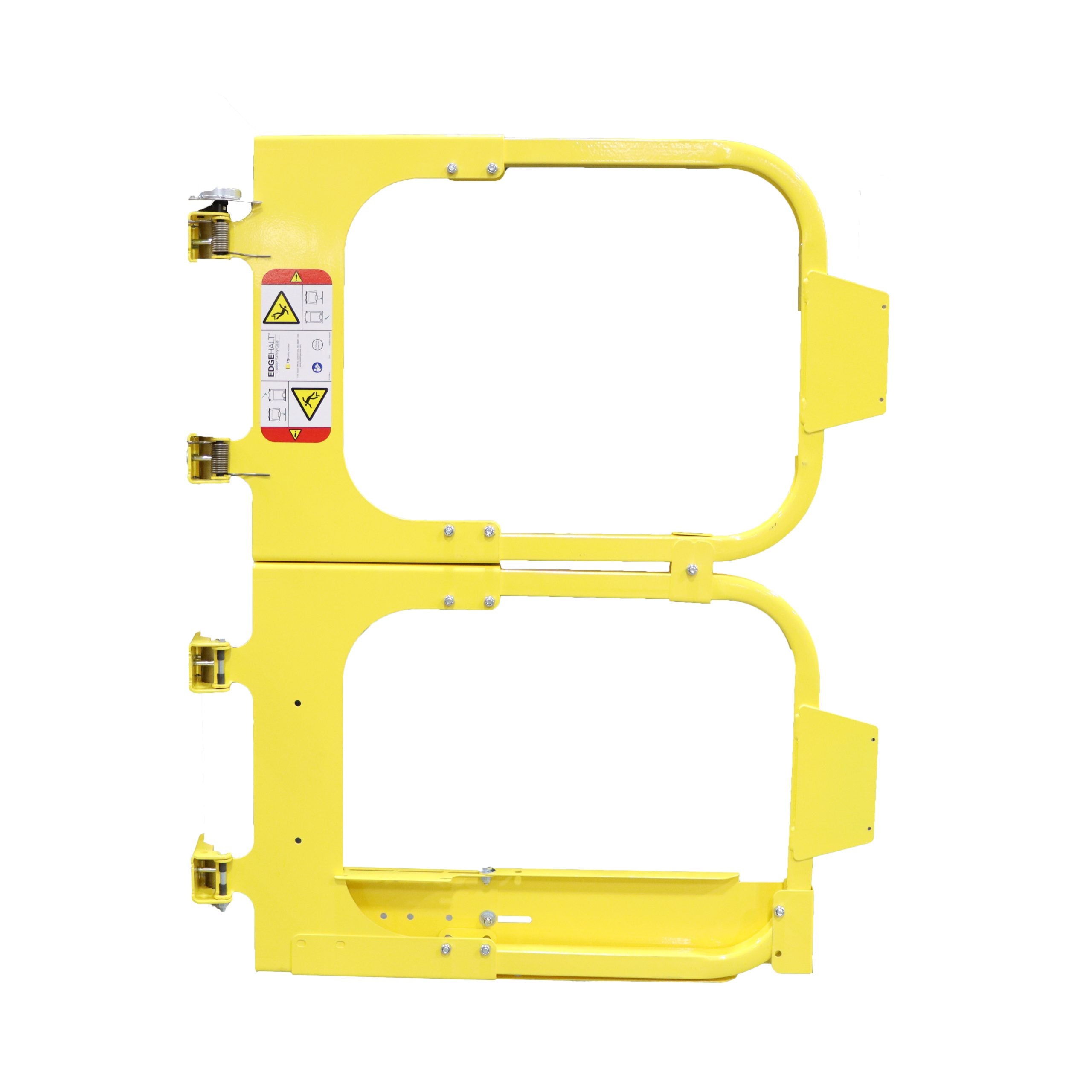

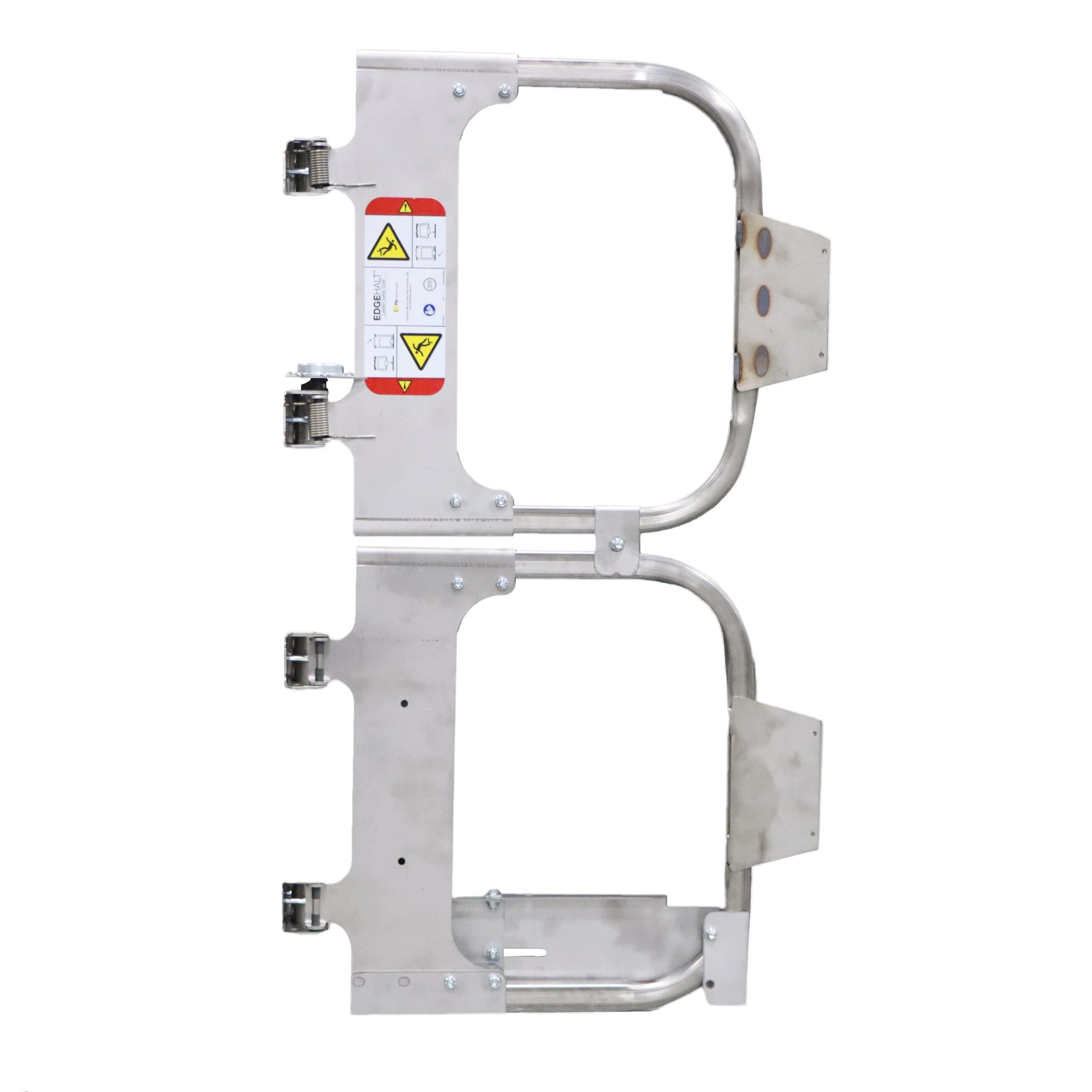

Finish Powder Coat Yellow Hot Dipped Galvanized 304 Stainless Steel

Opening Size 15"-20" // LSGF-1520 20"-30" // LSGF-2030 30"-40" // LSGF-3040 40"-50" // LSGF-4050

Description

Full-height ladder safety gate

The LSGF (Ladder Safety Gate - Full-height) minimizes the chances of falls from elevated platforms and ladderways. Similar to the standard LSG, the self-closing design ensures protection is ALWAYS in place when it is needed most. The LSGF is available in different nominlal sizes, with up to 10" of adjustability per gate.

Gate can be flipped or inverted to change the swing direction of the gate.

Easy installation

Full height ladder safety gate includes standard mounting hardware for attachment to standard round rail or square tubing. Unique railing like angle iron, flat bar and large pipes may require a no-drill adapter bracket.

Loosely attach the gate to the existing railing with included U-bolts
Align the top of the gate with the railing, and tighten U-bolts
Adjust the gate hoop to and toeboard to fit the opening dimensions.

Code compliant with guardrail safety regulations

All PS Doors Ladder Safety Gates comply with OSHA & ANSI guardrail regulations. Full height ladder safety gate meets required 42″ top rail, mid-rail and 5″ safety toeboard for increased personnel protection.

Stand-off mounting option

The LSG-STNDOFF (Ladder Safety Gate Stand-Off) provides a grab spot for personnel to steady themselves when transitioning through a ladder way onto an elevated platform or mezzanine. The optional stand-off kit provides your ladder way with an extra 7.5 inches of foot clearance at the platform's edge.

Optional Adapter Brackets

PS DOORS ladder safety gates include standard mounting hardware compatible for round and square railing systems. No-drill adapter brackets (sold separately) can be used for mounting to angle iron, flat or non-standing railings.

Please note: When using an adapter kit, the min/max range of each gate will be altered
