Paired Ladder Safety Gate – Dual industrial self-closing swing gate – Prevents falls from elevated platforms – OSHA & ANSI Compliant – Simple installation – PS Doors LSG-DBL

$412.00$648.00

Clear
  • 6 Nominal Sizes – LSG-DBL is available in differant sizes, each with a laterally adjustable width (-) 1.25″ to (+) 2.5″.
  • Passive fall protection – Prevents falls from elevated ladderways, scaffolding, catwalks, narrow walkways and elevated platforms.
  • Code compliant – Meets OSHA / ANSI top/mid-rail guardrail heights
  • Easy installation – Installs in moments using just a 1/2″ deep-well socket wrench.
  • Universal swing direction – Gate can be inverted to change the direction the gate swings outward.
  • Optional stand-off mount – Include the LSG-STNDOFF to provide personnel a spot to grip the ladder and 7″ of foot clearance on platform edge.
  • Optional adapter bracketsAdapter brackets can be utilized for non-standard railing or to prevent drilling holes.
Get FREE SHIPPING when you spend $100 or more! (excludes bulky items)
SKU: psdoors-lsgdbl Categories: , Tag:
LSGDBL-9-GAL - 18” to 22-1/2” // LSGDBL-9, Hot Dipped Galvanized
in stock
LSGDBL-21-GAL - 40” to 46-1/2” // LSGDBL-21, Hot Dipped Galvanized
in stock
LSGDBL-21-SS - 40” to 46-1/2” // LSGDBL-21, 304 Stainless Steel
in stock
LSGDBL-24-PCY - 46” to 52-1/2” // LSGDBL-24, Powder Coat Yellow
in stock
LSGDBL-24-GAL - 46” to 52-1/2” // LSGDBL-24, Hot Dipped Galvanized
in stock
LSGDBL-24-SS - 46” to 52-1/2” // LSGDBL-24, 304 Stainless Steel
in stock
LSGDBL-15-SS - 28” to 34-1/2” // LSGDBL-15, 304 Stainless Steel
in stock
LSGDBL-18-PCY - 34” to 40-1/2” // LSGDBL-18, Powder Coat Yellow
in stock
LSGDBL-18-GAL - 34” to 40-1/2” // LSGDBL-18, Hot Dipped Galvanized
in stock
LSGDBL-18-SS - 34” to 40-1/2” // LSGDBL-18, 304 Stainless Steel
in stock
LSGDBL-21-PCY - 40” to 46-1/2” // LSGDBL-21, Powder Coat Yellow
in stock
LSGDBL-9-SS - 18” to 22-1/2” // LSGDBL-9, 304 Stainless Steel
in stock
LSGDBL-12-PCY - 22” to 28-1/2” // LSGDBL-12, Powder Coat Yellow
in stock
LSGDBL-12-GAL - 22” to 28-1/2” // LSGDBL-12, Hot Dipped Galvanized
in stock
LSGDBL-12-SS - 22” to 28-1/2” // LSGDBL-12, 304 Stainless Steel
in stock
LSGDBL-15-PCY - 28” to 34-1/2” // LSGDBL-15, Powder Coat Yellow
in stock
LSGDBL-15-GAL - 28” to 34-1/2” // LSGDBL-15, Hot Dipped Galvanized
in stock
LSGDBL-9-PCY - 18” to 22-1/2” // LSGDBL-9, Powder Coat Yellow
in stock
Bulk Add to Cart

Bulk Quote

Submit a request for bulk discount rates. Use this for large quantity orders that exceed the page quantity price breaks. Quotes are typically processed within 1 business day.

Free Bulk Quote

You may also like…

Description

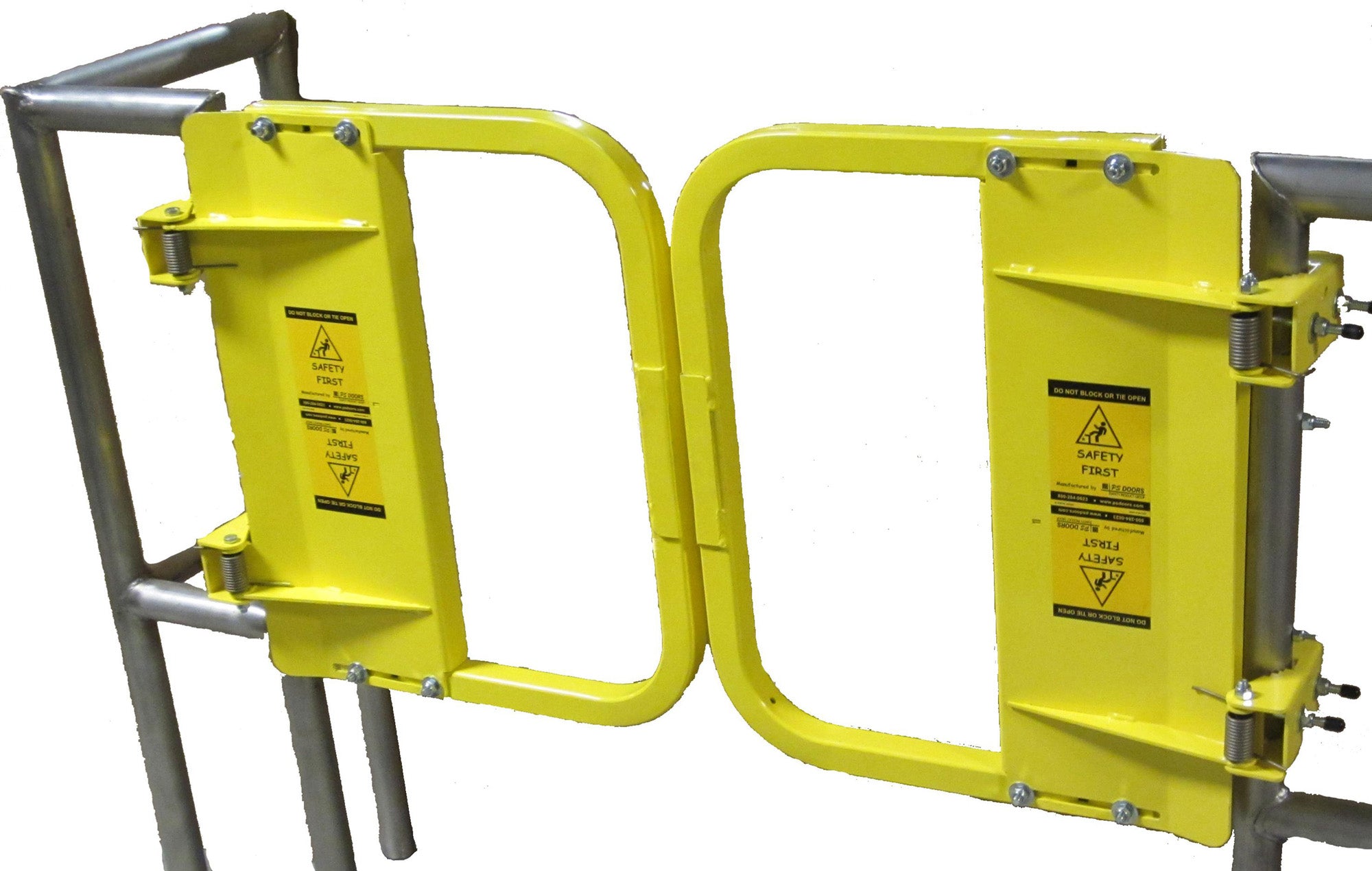

Paired Ladder Safety Gate (LSG-DBL)

The paired ladder safety gate protects against accidental falls from ladder ways and other elevated platforms. LSG-DBL is available in 6 nominal sizes and allow for lateral adjustment up to 3.75″ (-1.25″ to +2.50″). Gate is shipped fully assembled and includes standard mounting hardware for round pipe and square railings.



Protects employees from dangerous falls

The paired ladder safety gate (LSG-DBL) is a pair of self-closing swing gates designed to prevent falls from elevated platforms. The LSG-DBL is ideal for confined spaces with limit gate clearance. The gate acts as passive fall protection, always in place and ready to catch someone experiencing a fall. PS DOORS ladder safety gates are ANSI & OSHA compliant for top and mid-rail height requirements.



Easy installation

Paired ladder safety gate includes all required mounting hardware for attaching to standard round rail or square tubing. If attaching to angle iron, flat bar or non-standing railing gate will bolt directly to railing.

  1. Secure the suppose channel to the railing EXACTLY 3-5/8″ from top.
  2. Loosely attach gates to railing with supplied U-bolts.
  3. Align the gate to the top of the railing, adjust hoops to opening width (leaving 1″ of clearance between gates).
  4. Adjust stop bolts for proper alignment.

Full installation, optional & maintenance manual available here.



Additional information

MpnLSGDBL-9-GAL, LSGDBL-21-GAL, LSGDBL-21-SS, LSGDBL-24-PCY, LSGDBL-24-GAL, LSGDBL-24-SS, LSGDBL-15-SS, LSGDBL-18-PCY, LSGDBL-18-GAL, LSGDBL-18-SS, LSGDBL-21-PCY, LSGDBL-9-SS, LSGDBL-12-PCY, LSGDBL-12-GAL, LSGDBL-12-SS, LSGDBL-15-PCY, LSGDBL-15-GAL, LSGDBL-9-PCY
Weight25 lbs
Dimensions28 × 24 × 6 in
Brand

Opening Size

18” to 22-1/2” // LSGDBL-9, 22” to 28-1/2” // LSGDBL-12, 28” to 34-1/2” // LSGDBL-15, 34” to 40-1/2” // LSGDBL-18, 40” to 46-1/2” // LSGDBL-21, 46” to 52-1/2” // LSGDBL-24

Finish

, ,

IncludesMounting Hardware
Adjustable Increment3.75 inches
MaterialSteel
Built inUSA
MountingPipe, Angle, Channel, Flatbar, Existing Wall
Swing DirectionLeft or Right
Green Environmental Attribute50% Post-Consumer Recycled Content
In Use Height3-1/2 ft.
