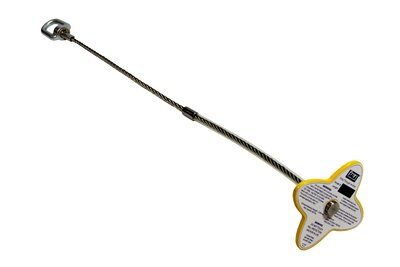

Drop-thru Anchor – For concrete or steel ceilings & decking – Installs into 1-1/2 in. to 1-3/4 in. diameter holes with 4 in. minimum thickness – 360-degree rotating D-ring – Shielded cable – 3M DBI-SALA
$169.00 – $178.00 + Free Shipping
- 1-1/2″ to 1-3/4″ dia. hole – Anchor installs into 1-1/2 in. to 1-3/4 in. dia. hole (38.1 to 44.5 mm) with a minimum thickness of 4 in. (101.6 mm).
- Concrete or steel ceilings – Designed to be used horizontally in overhead concrete or steel holes
- 360-degree D-ring – Swiveling stainless steel d-ring allows connected user complete freedom of movement
- Shielded cable – Partially shielded cable protects the inner-workings of the device, ensuring it lasts a long time.
- Compact & lightweight – Easy to move, transport between job sites and store away when not in use.
- Corrosion resistant – High strength stainless steel components with anti-corrosion finish.
- Different lengths available – Drop-thru anchor available in lengths of: 2ft, 6ft, 8.5ft & 10ft.
in stock
in stock
in stock
in stock
Bulk Quote
Submit a request for bulk discount rates. Use this for large quantity orders that exceed the page quantity price breaks. Quotes are typically processed within 1 business day.
Free Bulk QuoteYou may also like…
UFA30090 3/4″ Removable Bolt Anchor for Concrete – KStrong
$136.00
6 in. and 12 in. Concrete Bolt Fastener Kit For Roof Top Anchor, 4 ea/Pack – 7241180 & 7241181 – 3M DBI-SALA
$204.00 – $212.00
1” Honeywell Miller Grip Anchorage Connector for Concrete 497
$429.99
3/4” Honeywell Miller Grip Anchorage Connector for Concrete 496
$198.99
42in. Concrete Anchor Strap (25 Pack) – Web loop on each end – Slips over rebar – Abrasion resistant wear pad – Disposable design – 3M PROTECTA 2190063
42in. Concrete Anchor Strap (25 Pack) – D-ring at one end web loop on other – Slips over rebar – Abrasion resistant wear pad – Disposable design – 3M PROTECTA 2190057
Concrete D-ring Anchorage Plate – Concrete bolt kit w/ 4 bolts included – Bolts to structure or fall arrest anchor point – Pre-drilled 14.3mm holes – 3M PROTECTA AJ720A
$55.50
Saflok Toggle Anchor – ***OBSOLETE *** 3M DBI-SALA
Universal Roof Top Anchor – For metal, concrete & wooden roofs – For use on flat or sloped (<= 3:12 pitch) roofs – 360-degree rotating D-ring – Compatible with Horizontal Lifeline – 3M DBI-SALA 2100133
Concrete Parapet Anchor – Fits 1 in. to 14.5 in. wide concrete parapets – Non-damaging clamp-style anchor – Steel d-ring fall arrest anchor – 3M DBI-SALA 8523178
$1,158.00Description
Drop-thru anchor for concrete or steel
Drop-thru anchors are easy to install, reliable and can even be reused over and over again. Simply install the anchor upside down in a way that fixes the anchor in place while allowing the D-ring to hang from the ceiling. The 3M DBI-SALA drop-thru anchor can be installed directly into concrete ceilings or simply wedged into place.
Installs into 1-1/2 in. to 1-3/4 in. dia. hole (38.1 to 44.5 mm) with a minimum thickness of 4 in. (101.6 mm)
The anchor is intended for horizontal use from overhead concrete or steel. The drop-thru anchor is portable, easy to install and can be reused time and time again. Made from high strength steel components with anti-corrosion finish – this anchor is deigned to last a long long time. The cable is even partially shielded to protect the inner-workings from dust, grime and debris.
The 360-degree swiveling d-ring allows for a user to connect to the anchor – allowing them to work safely at height without the worry or falls or injury.
Anchorage connectors
Often overlooked but critical to any personal fall arrest system - the anchor is what provides support to your system in case of a fall. Anchor are categorized based on the structure being attached to - ranging from: wooden rooftops, concrete columns or steel I-beams.
Your anchor can be a permanent installation meant for reoccurring jobs like maintenance and inspection work - or reusable and ideal for crews moving job to job. All anchors must provide a secure point of attachment to a personal fall arrest system and be capable of supporting 5,000 lbs. / or meet the OSHA 2:1 safety factor.
Resources
Additional information
| Mpn | 2104819, 2104818, 2104817, 2104816 |
|---|---|
| Gtin | 840779146659, 840779146642, 840779146635, 840779146628 |
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
| Brand | |
| Anchor Installation Type | Reusable |
| Overall Length | 8.5 ft. (2.6 m), 2 ft. (0.6 m), 6 ft. (1.8m), 10 ft. (3m) |
